Awtomatikong Shampoo Filler / Shampoo Filling Machine / Shampoo Filling Line

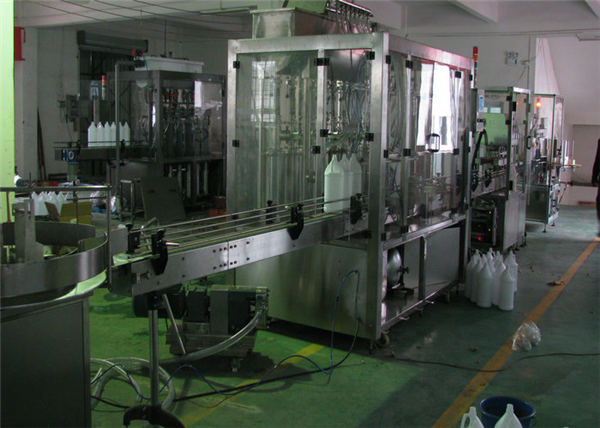

This is a 13 heads linear piston filling machine, especially designed for viscous daily chemical products such detergent shampoo, body lotion, shower gel and so on. Controlled by PLC and touch screen control panel. Accurate measuring, advanced structure, stable operation, and low noise, widely adjusting range and fast filling speed.
1. Adopts advanced mechanical and electrical integration technology. Any filling specification can easily be done by changing parameters in touch screen. Not only the filling volume of 13 filling heads can be changed substantially, but also each filling head volume can be changed finely.
2. With PLC technologies, which make operation of machine steadier, convenient, the human machine interface is friendlier. Photoelectric sensor, approaching switch and other elements are using international famous brand. No bottle no filling, the machine can stop automatically and alarm when bottles get blocked.
3. Various sealing rings used can meet different characteristics of products requirements.
4. Designing and production meet GMP. Easily dismantle, clean and maintain. The parts which contact filling products are made of high quality stainless steel. The machine is safe, environmental, sanitary, adapting to various kinds of working places.
5. The material which contacts liquid will be made of SS304.
6. This machine has the function of “automatic cleaning system” in PLC, can be operated by touch screen.

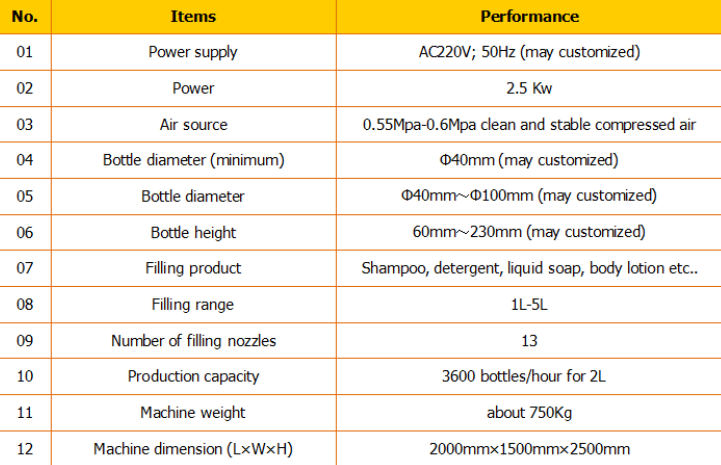

Parameter ng Teknikal

---

Parte ng makina

1. Filling nozzle
(1) Specification adjustment can be achieved without tool;
(2) The filling pipes are all adopt fast loading clamp, easy to dismantle and maintain.
(3) No dripping.

Pangunahing Mga Tampok

(1) The position of adjustment are all carved scale or equipped with digital display, easy to adjust;

Parte ng makina

Part of filling hopper:
(1) The connector is all adopt fast loading clamp type, easily dismantle, clean and maintain.
(2) All pipe joints are installed a drip tight gasket, for avoiding liquid drip, ensured a long-term service life and won’t penetrate.
(3) Designing and production meet GMP. Easily dismantle, clean and maintain.

Pangunahing Mga Tampok

Piston fall off piston cylinder
For the difficulty of cleaning piston cylinder and changing sealing ring, our company designed a new filling machine which adopt fully automatic cleaning system, before clean or replace material, through man-machine interface operation, the piston can automatically fall off and return the piston cylinder, then the rest material will flow into recycling platform by gravity, save the time of manual cleaning.



Mabilis na Mga Detalye

---

Uri: Machine ng Pagpuno
Kondisyon: Bago
Application: Chemical
Uri ng Packaging: Mga Botelya, Mga Larong
Packaging Material: Glass, Plastik
Awtomatikong Baitang: Awtomatiko
Uri ng Hinimok: Electric
Boltahe: 220V / 380V
Kapangyarihan: 2.5kw
Lugar ng Pinagmulan: Shanghai, China (Mainland)
Pangalan ng Brand: VKPAK
Dimension(L*W*H): 2000X1500X2200
Timbang: 800kg
Sertipikasyon: CE ISO
Ibinigay ang Serbisyo pagkatapos ng benta: Magagamit ang mga inhinyero sa makinarya ng serbisyo sa ibang bansa
Filling material: Shampoo
Material: SS316
Capacity: 2000-30000bph
Garantiyang: 1 Taon
Usage: Chemical
Product name: Bottle Automatic Filling Machine
Function: Filling Capping Labeling

---
