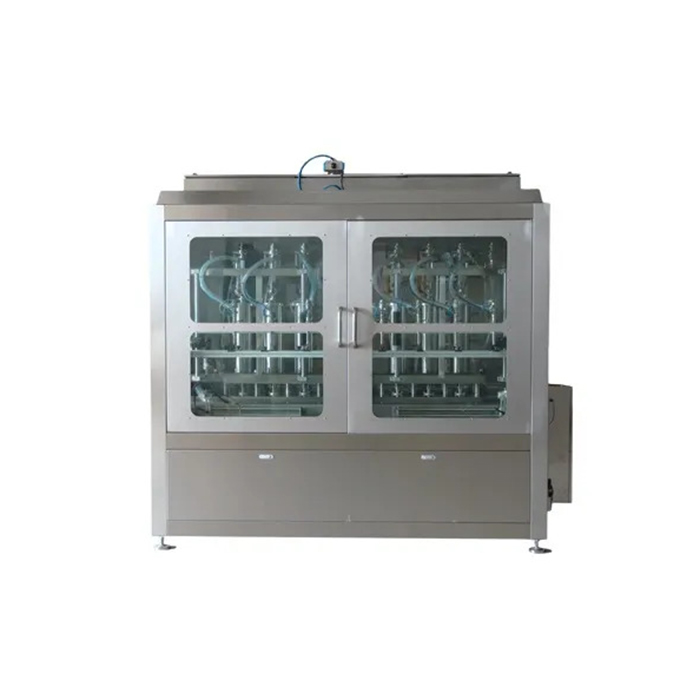

Automatic PET Bottle Filling Machine / Bottling Line / Project

ang tatlong-sa-isang makina para sa bote ng PET ay nagsasama ng pag-andar ng paglaway, pagpupuno at pagpupulong nang magkasama. Batay sa advanced na teknolohiya sa ibang bansa, at dinisenyo ayon sa mga kahilingan sa pagpoproseso ng tubig

Pangunahing tampok

---

1. This machine has a compact structure, completed control system, easy to operate and highly automated.

2. By changing the star-wheel, screw bottle inlet and arc guide plate can realize to change the bottle shape.

3. The parts that direct contact with product are made of food grade stainless steel and no technology corner pockets and easy to clean.

4. By adopting high speed filling valve, the liquid level is precise and no waste. That guarantees the demand of filling technology.

5. The machine adopts high effective cap sorting system and completely self control and protective device.

6. The machine is equipped with perfect overload protective device that can keep the equipment and operator safely.

7. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting etc.

8. The electric components and pneumatic components are all introduced from world famous brand products.

Halaga ng posisyon sa pagtatrabaho	Rinsing 32, pagpupuno 32, pagpupulong 10
Kapasidad ng produksyon	15000BPH (500ml)
Presyon ng mapagkukunan ng hangin	0.7Mpa
Pagkunsumo ng hangin	1.2m3 / min
Rinsing presyon ng tubig	0.2-0.25Mpa
Paglilinis ng kapasidad ng tubig	2.5T / H
Pangunahing kapangyarihan ng motor	3.2kW
Kabuuang kapangyarihan	4.8kw
Ang sukat	4250X2150X2200mm (L × W × H)
bigat	5200kg

Nagbibigay din kami ng Kumpletong Awtomatikong Pure Water Bottling Plant

May kasamang 4 pangunahing bahagi:

1. Plastic bottle blow molding machine
2. Water cleaning system
3. Water washing, filling, capping machine.
4. Conveyor system, labeling machine, dating machine, film wrapping machine

Ang kumpletong linya ng pangunahing paglalarawan:

---

1. The plant can produce different volume bottles, from 200ml to 2000ml bottles, round and square bottles, plastic and glass bottles. It is very easy to change the different bottle molds.

2. The plant is highly automatic, you can operate on the touch screen to adjust the machine speed and working.

3. We have different speed plants, commonly, 2000BPH, 4000BPH, 7000BPH, 10,000BPH, 15000BPH..ect.

4. The material is stainless steel 304, food grade much clean and safe.

5.  We provide the engineers for customer installation, training in customer's factory.

Mga Modelo at Listahan ng Bilis

---

Model	XGF8-8-3	XGF14 / 12/5	XGF16 / 16/5	XGF24 / 24/8	XGF32 / 32/10
Naghuhugas ng kamay	8	14	16	24	32
Pagpuno ng mga balbula	8	12	16	24	32
Nakakalakip ng mga kamay	3	5	5	8	10
Angkop na Mga Botelya ng Pinta / Glass
Kapasidad (Bilis) Batayan sa 500ml	2000BPH	5000BPH	7000BPH	12000BPH	15000BPH

Mga Elektronikong Mga Kompanya ng Elektroniko

---

Pangunahing komposisyon	Tagabigay ng paglalarawan
PLC	Mitsubishi (Japan), Siemens (Alemanya)
Pindutin ang screen	Weinview (Taiwan)
Frequency converter	Mitsubishi (Japan), Siemens (Alemanya)
Air switch	Schneider (Pransya)
Breaker	Siemens (Alemanya)
Pakikipag-ugnay	Siemens (Alemanya)
Photoelectric switch	Omron (Japan)

Mabilis na Mga Detalye

---

Uri: Machine ng Pagpuno
Kondisyon: Bago
Aplikasyon: Inumin, Chemical, Medikal
Uri ng Packaging: Mga botelya
Materyal ng Packaging: Plastik
Awtomatikong Baitang: Awtomatiko
Uri ng Hinimok: Electric
Boltahe: 380V / 220V
Kapangyarihan: 4.8KW
Lugar ng Pinagmulan: Shanghai, China (Mainland)
Pangalan ng Tatak: NPACK
Ang sukat (L * W * H): 4250X2150X2200mm
Timbang: 5200KGS
Sertipikasyon: CE, ISO, SGS
Ibinigay ang Serbisyo pagkatapos ng benta: Magagamit ang mga inhinyero sa makinarya ng serbisyo sa ibang bansa
Pabrika: LINKS MACHINERY
Sukat ng bote: 150ml hanggang 2000ml
Bote Neck Diameter: 15-55mm
Materyal ng botelya: Plastik / Salamin
Bilis (base sa 500ml bote): 15000B / H
Sistema ng Kontrol: PLC Touch Screen (MITSUBISHI JAPAN)
Cap: Screw / Press Cap
Cap elevator: Mayroon
Pagpuno ng likido: Mineral / Pure Pure

---
