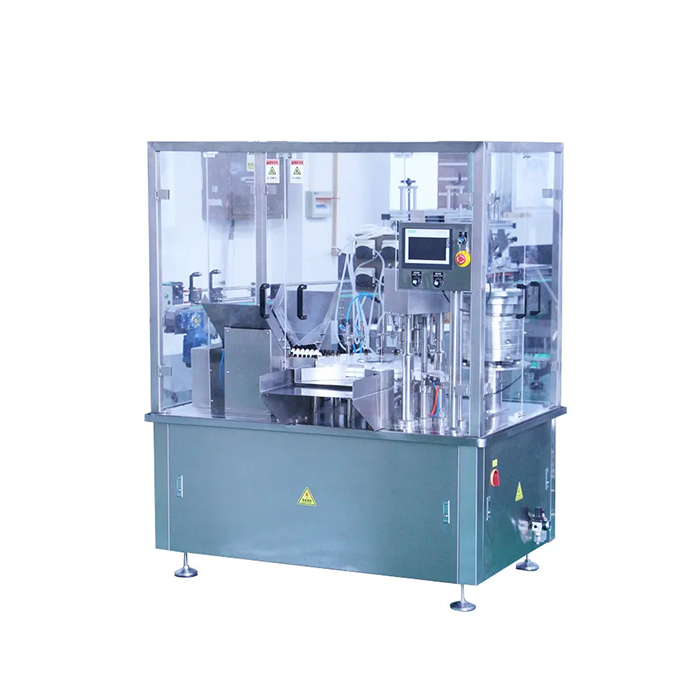

2-in-1 Awtomatikong Pagpuno ng Bottle At Capping Machine Para sa Liquid

2-in-1 awtomatikong pagpuno ng bote at capping machine para sa likido

1. The material which contact directly with the oil is the SUS304 (GMP), made in China.

2. The 3-in-1 is mainly used to food, daily,cosmetic Paste filling and capping.

3. Ginagampanan ng pagpuno ng makina ang sikat na mundo ng mga de-koryenteng sangkap, mababang kabiguan, maaasahang pagganap, mahabang buhay ng serbisyo.

4. Simpleng dami ng pagpuno at pagpuno ng bilis ng regulasyon ng touch screen display, magandang hitsura.

5. Mayroong pag-andar ng walang bote na walang pagpuno, antas ng likido awtomatikong control singilin. Hindi mo kailangang baguhin ang mga bahagi, iba't ibang mga pagtutukoy ng hugis ng bote ay maaaring mabago nang napakabilis para hindi na kailangang magbago ang mga bahagi.

6. Ang pagpuno ng ulo ay nilagyan ng espesyal na pagpigil sa blowout, pinupuno ang walang wiredrawing, dripping phenomenon.

Ang proseso ng pagtatrabaho:


Ang awtomatikong linya ng pagpuno ay may servo system. Ang artipisyal na ilagay ang mga walang laman na bote sa conveyor belt, awtomatikong ipasok ang linya ng pagpuno ayon sa pagkakasunud-sunod ng sistema ng kontrol ng PLC, pagkatapos ay kumpleto ang pagpuno ng materyal.

Pag-configure:


1. Materyal ng Makina: SUS304

2. Materyal na Makipag-ugnay: SUS316

3. Mga Bahagi ng Pahinga Materyal: mahigpit na alumina

4. Pagpuno ng Servo Motor: Taiwan TECO

5. Sistema ng Kontrol ng PLC: Siemens

6. Touch Screen: Siemens

7. Mga sangkap na Photoelectric Sensor: Korea AUTONICS

8. Mga low-boltahe na Elektronikong Kagamitan: Schneider

Teknikal na Parameter


Pagpuno ng Dami100-200ml
(maaaring ipasadya para sa iyong laki)
Kapangyarihan ng Makina1.5KW
Bilis ng Pagpuno40-60B / MPag-supply ng BoltaheAC 220 / 380V 50 / 60hz
Pagpuno ng Katumpakan+-0.5%Timbang ng Makina360KGS
Air Pressure 0.4-0.6MPaLaki ng makina3500 * 1580 * 2190mm

Mabilis na Mga Detalye


Uri: Machine ng Pagpuno
Kondisyon: Bago
Aplikasyon: Inumin, Chemical, Kalakal, Pagkain, Medikal
Uri ng Packaging: Mga Botelya, Mgaansan, Mga Carton, Kaso, Nakatayo na Humiga
Materyal ng Packaging: Salamin, Metal, Plastik
Awtomatikong Baitang: Awtomatiko
Uri ng Hinimok: Elektrikal at Air
Boltahe: 220V / 380V
Kapangyarihan: 1.6KW
Lugar ng Pinagmulan: Shanghai, China (Mainland)
Pangalan ng Tatak: NPACK
Sukat (L * W * H): 2200X2100X2200MM
Timbang: 450kg
Sertipikasyon: CE ISO
Ibinigay ang Serbisyo pagkatapos ng benta: Magagamit ang mga inhinyero sa makinarya ng serbisyo sa ibang bansa
Pangalan ng produkto: 2-in-1 awtomatikong pagpuno ng bote at capping machine para sa likido
Materyal: SUS304 / 316
Pag-andar: likido tagapuno
Paggamit: Pakete ng Inumin
Pagpuno ng materyal: Pag-agos ng Liquid
Uri ng bote: Round Bottle
Kapasidad: 40-150B / M
Warranty: 12 Buwan


A 2-in-1 automatic bottle filling and capping machine for liquid is a piece of equipment used for filling bottles with liquid and then capping them. The filling and capping process is done automatically, which saves time and reduces the need for labor. This machine is used in various industries, including food and beverage, pharmaceuticals, and cosmetics.

The filling part of the machine works by using a volumetric filling method to fill the bottles with the liquid product. The volumetric filling method ensures that the bottles are filled with the correct amount of product, which is important in industries where the correct dosage is crucial. The machine can fill a range of bottle sizes and types, making it versatile for use in different industries.

The capping part of the machine uses a mechanical method to place the caps on the filled bottles. The caps can be of different sizes and shapes depending on the type of product being packaged. This machine ensures that the caps are securely placed on the bottles to prevent any leaks or spills.

The 2-in-1 automatic bottle filling and capping machine is an essential piece of equipment for any manufacturing process that involves liquid products. It can increase productivity, reduce labor costs, and ensure that the products are packaged consistently and correctly. The machine is easy to operate and can be customized to meet the specific needs of the business, making it a valuable investment.
